Different Sizes Automatic Cable Tie Tool With 1pcs/1s Fast Bundling Speed

Different Sizes Automatic Cable Tie Tool With 1pcs/1s Fast Bundling Speed

  • High Light

    zip tie tensioner tools

    ,

    auto bundling machine

  • Name
    Automatic Cable Tie System
  • Model
    SWT36120F
  • Max Binding Dia.
    22mm
  • Min Binding Dia.
    3mm
  • Power
    AC220V 50 / 60Hz
  • Pneumatic Pressure
    5kg/cm²
  • Place of Origin
    China
  • Brand Name
    Swift
  • Certification
    CE
  • Model Number
    SWT36120F
  • Minimum Order Quantity
    1pcs
  • Price
    negotiation
  • Packaging Details
    wooden case
  • Delivery Time
    10-15days
  • Payment Terms
    T/T
  • Supply Ability
    100pcs/month

Different Sizes Automatic Cable Tie Tool With 1pcs/1s Fast Bundling Speed

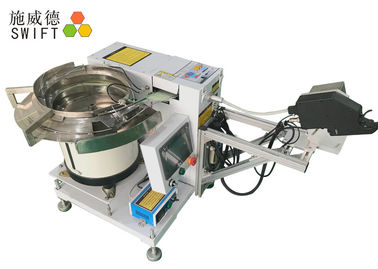

Fixed In Assembly Line Automatic Cable Tie Tool Binding Force Stronger CE



The machine can automatically bundle different sizes of goods. You don't need to pick up the cable tie one by one and wrap the objects using ties by hands.



Machine  specifications



No. Item Description Value
1 Model SWT36120F No
Fixed type available No
2 Size Of cable size Width 3.6mm
Length 120mm
Tensile strength 12kg
Thicker 1.25mm
3 Operation speed For one cable tie 1.0S
4



Max banding Dia.



For wire Ø 22.0mm
For tube Ø 20.0mm
5 Min banding Dia. For tube / wire Ø 3.0mm
6 The feeding hose Length 2.5m
7 The data hose Length 2.5m
8 The gun head size L * W * H 284 * 240 * 149mm
9 The bending force 5 kinds of force available
10 Voltage AC220V, 50 / 60Hz, Euro plug
11 The gun V. DC48V ( auto switch )
12 Power 1000W
13 Pneumatic pressure 5kg / cm²
14 Warranty 12year



SWT36120F details



1 . The fixed gun head is larger than the handheld type. The effect of tensile strength seems  stronger than others.



2 .  When manual tool or other type of machine could not tighten the harness with PVC sleeve or bags sealing, the fixed type may be your better choice.



3 . The gun head is only fixed in the working desk or near the assembly line. It is not suitable for handheld.



4 . Vibration feeding, pedaling the pedal, finish bundling, all operations only takes 1.0 second.



5 . Pls keep the machine horizontally. If the machine is on the uneven ground, that would have bad influence on it.



How to get the machine?



1 . Inquiry. Pls contact us by email, WhatsApp or Skype. We need to confirm the cable tie size that you are using and what objects you want to bind.



2 . Quotation. We would offer you the competitive price and other details.



3 . Payment. We will make the machine after confirm the payment. It will take about 4days to reach our band account.



4 . Lead time. It is about 10 - 15days. Once finish it, we will inform you and arrange the shipment.



5 . After sales service. We will send an email to you to confirm if you have received the machine and follow up the using situation. Have any problems, pls let me know.



The trade terms



1 . Payment term. 100%TT or negotiation.



2 . Shipping method. By sea, by express.



3 . Fob port Shenzhen or other place in China.



4 . EXW price or Fob price available.



Our company



We are a professional manufacturer, producing automatic cable tie tool.



We are located in the BaoAn District of Shenzhen China, near the Shenzhen Airport.
