Using W2.5 * L100 Zip Ties Cable Tie Tool With Fast Bending Speed
Be suitable for goods fixing and packing, joints fixing for gas and liquid pipes, and for tightening those harness with sleeve.
SWT25100F features

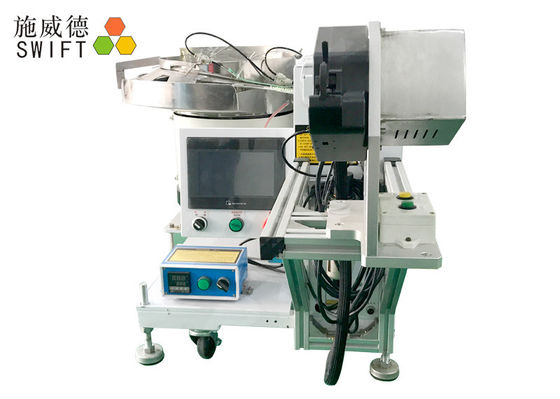

1 . The host machine consists of the gun head, the touch screen and so on. The vibration bowl and the gun both are connected to the host.
2 . The bulk cable ties are put into the vibration bowl at random but suggest obeying the one direction.
3 . Once tread the pedal, cable tie will be blown to the hose to the gun and automatically bundle goods.
4 . It can bundle the work piece with step features.
5. With 4 wheels, it is easy to move anywhere.
6. CE & RoHS
7 . Worker can sit down and handle the goods by two hands.
Product specifications
|
SWT25100F-The fixed in the workbench
|
||||||
|
Size Of cable size
|
W2.5 * L100mm | Voltage | AC220V,50/60Hz | |||
|
Operation speed
|
0.9S/cable tie | The gun V. | DC48V(auto switch) | |||
|
Max banding Dia. for wire
|
Ø18mm | Power | 1000W | |||
|
Max banding Dia. for tube
|
Ø16mm | Pneumatic pressure | 5kg/cm² | |||
|
Min banding Dia.
|
Ø2mm | Certificate | CE, RoHS | |||
| The bending force | adjustable |
The tensile strength of SWIFT cable ties
|
max 8kg | |||
|
Host size
|
L690* W670*H670mm | The host weight | 140kg/pcs | |||
|
Gun size
|
L278 * W240 * H149mm | The gun weight | 4kg/pcs | |||
| Other models | ||||||
|
Model
|
SWT25080F | SWT25120F | SWT36120F | |||
|
Operation speed
|
0.9S/cable tie | 0.9S/cable tie | 1.0S/cable tie | |||
|
Max banding Dia. for wire
|
Ø10mm | ø22mm | ø22mm | |||
|
Max banding Dia. for tube
|
Ø8mm | ø20mm | ø20mm | |||
|
Min banding Dia.
|
Ø2mm | Ø2mm | ø3.0mm | |||
|
The bending force
|
Adjustable | |||||
|
The tensile strength of SWIFT cable ties
|
8kg | 8kg | 12kg | |||
|
Voltage
|
The host: AC220V,50/60Hz; the gun: DC48V(auto switch) |
|||||
SWIFT service
We have our own factory to produce auto cable tie tool and zip ties.
1 year warranty and tech support all life.
FAQ
1. What is your MOQ?
For auto cable tie tool: MOQ 1pcs
For nylon cable ties: MOQ10,000pcs.
2. What is payment term?
100% TT before shipment.
3. What is the lead time of cable tie tool?
15-20days.
4. How can I know more info about your machine?
Pls contact the email sales at sz-swift dog com or add whatsapp 8615919214948.
Our products are sold all over the world, you can rest assured.
