|Name:||Auto Cable Tie Tool / Machine||Application:||Banding Cable Wire/plastic Tube|
|Size Of Cable Size:||W2.5 * L120mm||Mix Banding Dia.:||Ø2.0mm|
|Max Banding Dia. For Wire:||Ø22mm||Max Banding Dia. For Tube:||Ø20mm|
|Operation Speed:||1S||Banding Force:||Adjustable|
automatic bundling machine,
wire bundling machine

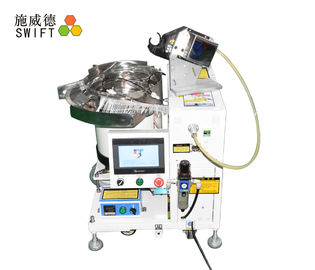

Fixing Type Auto Zip Tie Tool For Banding PVC Sleeve Max Dia 22mm
In factory, if use the machine to bundle the PVC sleeve with cable ties, you will find that it is very fast, safe and save time.The machine automatically wrap, tighten and cut off cable tie and takes about 0.9S. If by hand, worker spends about 6S to finish all the actions.
It can provide bigger tightening force than other methods. When manual tools or other type of machine could not tighten the harness with PVC sleeve or bags sealing, then this type of machine is your better choice.

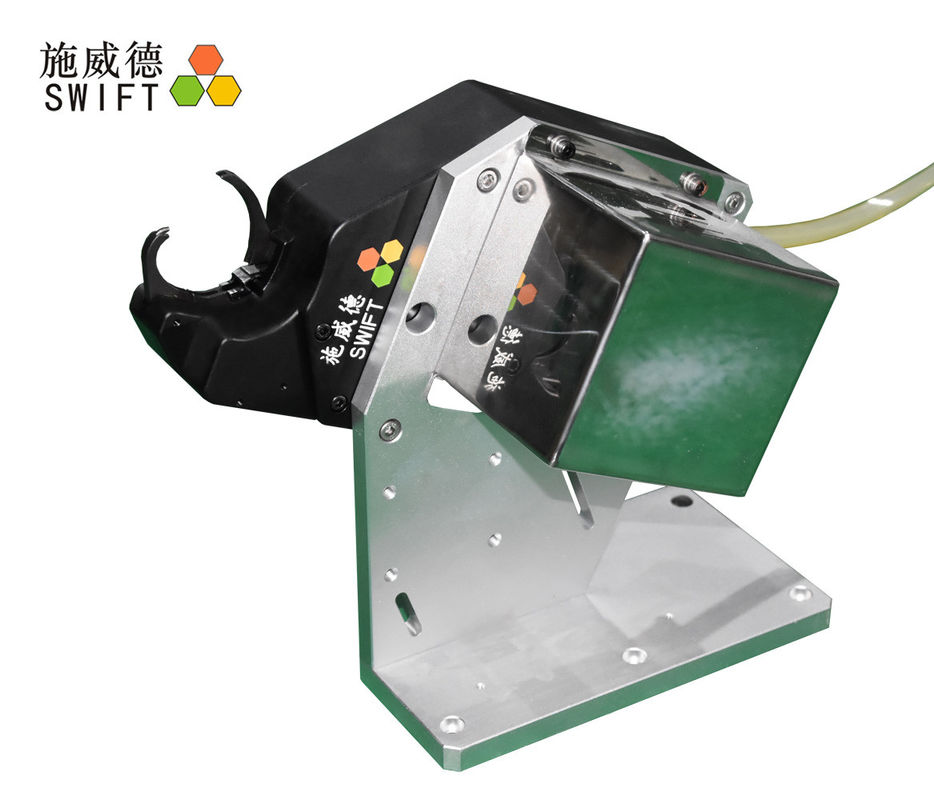

|Name||Fixing type SWT25120F|
|Cable tie spec||W2.5 * L120 mm|
|Min banding Dia.||Ø 2 mm|
|Max banding dia. for wire||Ø 22 mm|
|Max banding dia. for tube||Ø 20 mm|
|Operation speed||1.0S for one cable tie|
|Electrical power||Host : AC 220V 50/60 Hz|
|Tool head : DC 48V|
|Pneumatic pressure||5Kg / cm²|
|Size||Host : L690 * W670 * H670 mm|
|Tool : L284 * W240 * H149 mm|
|Loading qty of cable tie in the Vibration bowl||200-300pcs better|
|Weight||Host : 140 kg, with 4 wheels, move easily|
|Tool : 4.0kg|
|Power plug||Euro plug|
|How to use||Pedaling the pedal or reacted by photo-induction|
|Cable tie spec||W2.5 * L80 mm||W2.5 * L100 mm||W3.6 * L150 mm|
|Min banding Dia.||Ø 2 mm||Ø 2 mm||Ø 3 mm|
|Max banding dia. for wire||Ø 10 mm||Ø 16 mm||Ø 31 mm|
|Max banding dia. for tube||Ø 8 mm||Ø 18 mm||Ø 30 mm|
1 . Put the loose cable ties into the vibration bowl and will be sorted automatically.
2 . Only takes 1s to finish bundling, cutting off and collecting the tail waste of cable tie.
3 . One machine, one cable tie. That means SWT25120F only use cable tie size is W2.5 * L120mm.
4 . Easy operate and smart design. It helps to release two hands to pick up the goods.
5 . By turning the knob in the gun head, the binding force is up or down.
6 . PLC and touch screen, easily to manage.
7 . Including 4 main functions, such as temperature controlling system is to improve the cable tie toughness under 15℃.
8 . Be suitable to handle the work pieces with step features, besides PVC sleeve.
It is suitable for goods fixing and packing, joints fixing for gas & liquid pipes, bags sealing for food and liquid material, it is also suitable for tightening those harness with sleeve.
74*70*85cm/wooden case, the host machine
64*55*92cm/wooden case, the vibration bowl
