|Name:||Wire Tie Tool||Application:||Automatic Bundling Wires|
|Model:||SWT25100H||Cable Tie:||W2.5 * L100mm|
|Max Binding Dia.:||17mm||Power Supply:||AC220V, 50/60Hz|
cable tie tension tool,
cable tie installation tool
The Most reliable Wire Tie Tool Automatic Binding Cables SWT25100H

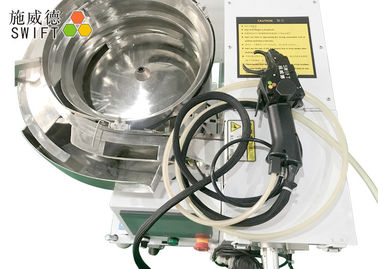

Automatic cable tie machine SWT25100H was created by Shenzhen SWIFT Automation Technology CO., LTD. Cable tie machine uses loose cable ties and it is a handheld type. It is a more reliable automatic cable tie system, compared with other brands using reel cable ties.
Why to choose nylon cable tie machine?
Assembly and installation tasks are becoming more and more complicate. Factories spend more and more workers bundling wires inside white goods or other products. However, the working efficiency is not improved in fact. And it takes much cost.
SWIFT cable tie machine could solve the problems of bundling quickly. It takes about 0.7S to bundle one cable tie. In the same situation, work maybe spend 1hour finishing the bundling task but swift wire tool maybe spend 10minutes only.
Using SWIFT cable tie machine, bundling faster, reliable and save!
SWT25100H Base Data
|Color||White and black|
|The movable plate||None|
|Pack cont.||1,000pcs (suggest using 200 -300pcs per time)|
|Package Quantity per||bag|
|Tool suitable cable tie material||Plastic|
|Product name||Automatic cable tying machine|
SWT25100H Product Dimensions
|Bundle ø Max||17mm|
|Min. Tensile strength||8kg|
|Cable tie width||2.5mm|
|Cable tie length||100mm|
|Flammability||UL 94 V2|
|Operating temperature||-30℃ - 80℃|
1 . Use loose cable ties, vibration sorting and feeding.

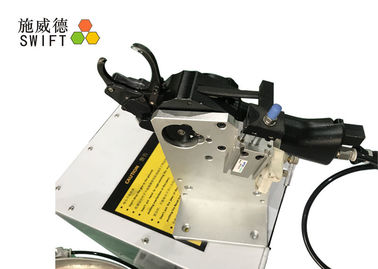

2 . Push the trigger in the gun head, automatically wrapping, threading, tightening and cutting.
3 . Collect the waste material to a box or a tin box with vacuum pump.
4 . One machine can save 4 – 6 operators a year.
5 . The tightening force can be adjusted.
6. Could be customized and applied to full automation line.
|Q1 . What does cable tie machine consist of?||The host machine, the vibration bowl and the gun tool|
|Q2 . Can I use cable ties T25080 on SWT25100 cable tie machine?||No, you can use T25080 on SWT25080H cable tie machine. T25100 plastic ties are used in SWT25100H.|
|Q3 . What is cable tie machine?||It is a machine that bundles different size objects with cable ties automatically.|
|Q4 . What is the min binding Dia of cable tie machine SWT25100H?||Ø2mm|
|Q5 . What is MOQ?||MOQ: 1pcs machine|
