| Brand Name: | SWIFT |
| Model Number: | SWT25080F |
| MOQ: | 1pcs |
| Price: | Negotiation |
| Delivery Time: | 10 - 15days |
| Payment Terms: | 100% T/T before ship |

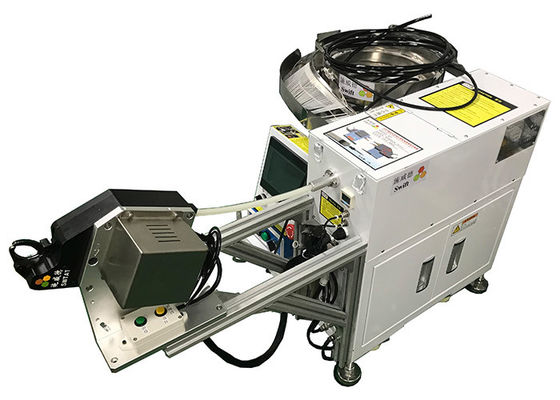

Adjustable Tension Force 17mm Bundle Cable Tie Machine
SWT25080F automatic tie wrap machine can bundle nylon zip ties T25080. It is useful to improve the bundle speed and increase the products capacity.
Operation process of automatic tie wrap machine
Put nylon cable ties in the feeder bowl – rearrange cable ties – touch the trigger in the tie gun – finish bundle – collect the waste into a box.
Technical data if automatic bundle cable tie machine
| Item | Data | Remark |
| Automatic cable tie gun model | SWT25080F | Cable tie gun is fixed in the table. |
| Bundle speed | 0.9S per cable tie | |
| Applicable cable ties model | T25080 | |
| Applicable length/width/thickness of cable ties | 80mm/2.5mm/1.1mm | Good quality nylon ties |
| Applicable wire harness/tubes diameters |
ø2mm – ø10mm for wire harness; |
Related with product material |
| Only cable tie gun power | DC48V | |
| Machine power | 1,000W | |
| Pneumatic pressure | 5kg/cm² | |
| Voltage | AC220, 50/60Hz | Different plugs available |
| Fixed cable tie gun weight | 4.0kg/pcs | |
| Bundle productivity | 3,000pcs/h | Related with product size |
| Bundle tension force | Adjustable, max 80N | 20 - 80N |
Nylon cable ties requirements of automatic cable tie machine
1. Cable ties material: good quality nylon PA66
2. Cable ties size: W2.5 *L80 * T1.1mm; head size: L4.8*W4.8*H3.8mm
3. Tensile strength: 8kg
4. Shape: no burr/flash, without deformed
Functions of automatic cable tie gun
1. High level automation: treading foot pedal, automatically finishing cable ties wrapping, tightening and cutting.
2. The waste material also would be collected into a box.
3. The bundle speed is 0.9S per cable tie. It is 2times faster than by-hand bundle.
4. PLC control system and touch screen. It is easy to manage parameters.
5. The bundle quality is good. And the binding effect is consistent.
6. High steady. The machine can keep working 8hours or even more.
7. Voltage: AC220V, 50/60Hz; pneumatic pressure: 5kg/cm²
About packing
| Item | Package | Packing size | Qty | N.W./kg | G.W./kg |
| Vibration Bowl for SWT25080F automatic cable tie machine | wooden case | 67*55*63cm | 1 | 52 | 66 |
| Host for SWT25080F automatic cable tie machine | wooden case | 74*70*85cm | 1 | 79 | 101 |
| Nylon cable ties T25080 | Caton box | 54*37*29cm | 6,000pcs/box | 13 | 14 |
About delivery
Lead time for machine: 10-15working days.
Lead time for nylon cable ties: 10days
FAQ
1. Do you have service centers in other countries?
No, we don’t. If have any doubts, pls free to contact us.
2. Why do you ask us to measure the bundled product diameter?
Because one machine has its own max bundle diameter, and it can’t bundle the bigger.
3. What is the difference between fixed cable tie gun and desktop cable tie machine?
Desktop cable tie machine don’t have alone cable tie gun. It just has jaws and can't bundle objects with step features.
