AC220V Handheld Automatic Wire Tie Machine For Wire Harness Plastic Bags

AC220V Handheld Automatic Wire Tie Machine For Wire Harness Plastic Bags

  • High Light

    Handheld Automatic Wire Tie Machine

    ,

    AC220V Automatic Wire Tie Machine

    ,

    AC220V automatic zip tie machine

  • Name
    A/T Cable Tie System / Cable Tie Gun
  • Application
    Automatic Bundle Nylon Cable Ties Fast
  • Machine Model
    SWT25100HC
  • Binding Dia.
    Ø3mm - Ø17mm
  • Cable Ties Model
    C25100, W2.5mm * L100mm
  • Operation Speed
    1S Every Cable Tie
  • Qty
    5,000pcs/reel
  • Voltage
    AC220V - AC240V,50/60Hz
  • Place of Origin
    Shenzhen, China
  • Brand Name
    Swift
  • Certification
    CE, RoHS, REACH
  • Model Number
    SWT25100HC
  • Minimum Order Quantity
    1
  • Price
    negotiation
  • Packaging Details
    wooden cases
  • Delivery Time
    12-15days
  • Payment Terms
    T/T
  • Supply Ability
    100pcs/month

AC220V Handheld Automatic Wire Tie Machine For Wire Harness Plastic Bags

AC220V Handheld Automatic Wire Tie Machine For Wire Harness Plastic Bags



SWT25100HC is easy to use for workers. It could automatically bundle, tighten and cut off nylon cable ties, and the waste lips would be aslo collected into a box. It helps wire harness factories, home appliance factories and air condition copper tubes manufacturer to save time and cost. One machine saves 3 workers' cost.



Product specifications



Name Automatic cable tie tool
Machine model SWT25100HC
Cable tie spec W2.5 * L100 mm
Min banding Dia. Ø 3 mm
Max banding dia. for wire Ø 17 mm
Max banding dia. for tube Ø 16 mm
Operation speed 1S every cable tie
Electrical power Host : AC 220V 50/60 Hz
Tool head : DC 24V, auto switch
Pneumatic pressure 5Kg / cm²
Certificate CE, RoHS



Advantages

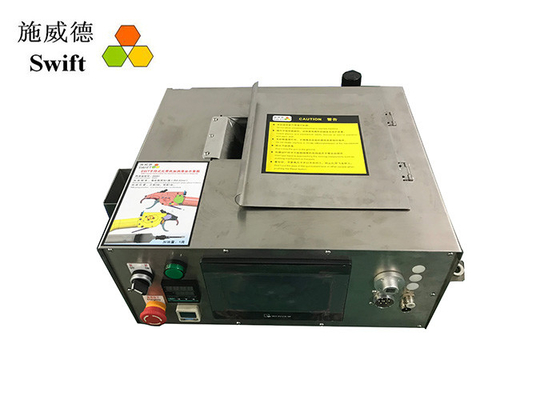

1. It is a small machine without vibration bowl. There are a host machine and a handheld cable tie gun.

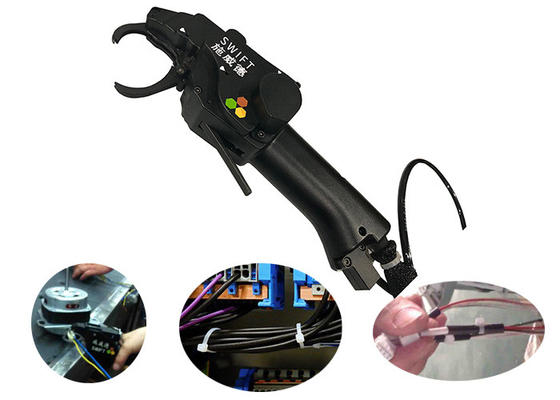

2. Handhled cable tie gun is light, about 0.91kg.



3. Finishing all actions take 1S every cable tie. It is fater 4 times than manual-bundle only.



4. The automatic cable tie tool SWT25100HC only uses reel cable ties C25100. C25100 is reel cable ties.



5 . The binding forces are adjusted and the max one is 8kg.



6 . Voltage: AC220V, 50/60Hz; different plug.



Application



Be suitable for the application of onsite assembly for plane, car, Applicance etc.



Christmas led lights.



Other machines



Other types SWT25080H SWT25120F SWT36200HC
Cable tie gun type Handheld Fixed Handheld
Cable tie spec W2.5 * L80 mm W2.5 * L120 mm W3.6 * L200 mm
Cable tie type Loose cable tie Loose cable tie Reel cable tie
Min banding Dia. Ø 2 mm Ø 2 mm Ø 20 mm
Max banding dia. Ø 14 mm Ø 22 mm Ø 42 mm
Operation speed 0.7S 0.8S 1.3S
Voltage AC220V AC220V AC220V



RFQ



1. Can I just buy the handheld cable tie gun?



No, the handheld cable tie gun is a part of the cable tie machine SWT25100HC.It can't work alone.



2. How about the warranty?



12 months and tech support forever.
