80N Adjustable AC220V Automatic Cable Tie Machine With Zip Tie Gun

80N Adjustable AC220V Automatic Cable Tie Machine With Zip Tie Gun

  • High Light

    AC220V Automatic Cable Tie Machine

    ,

    0.8S Auto Cable Tie Machine

    ,

    80N Auto Cable Tie Machine

  • Product Name
    Automatic Cable Tie Installation Tool
  • Bundle Capacity
    2400pcs/h(Including Auxiliary Time)
  • Bundling Dia.
    3mm - 18mm
  • Applicant Cable Ties
    T36100, Width3.6 * Length100mm
  • Width
    3.6mm
  • Length
    100mm
  • Bundle Speed
    0.8Second/single Cable Tie
  • Voltage
    AC220V, 50/60Hz
  • Place of Origin
    China
  • Brand Name
    SWIFT
  • Certification
    CE and RoHS
  • Model Number
    SWT36100H
  • Minimum Order Quantity
    1pcs
  • Price
    Negotiation
  • Packaging Details
    wooden cases
  • Delivery Time
    15days
  • Payment Terms
    100% T/T before ship
  • Supply Ability
    100pcs/month

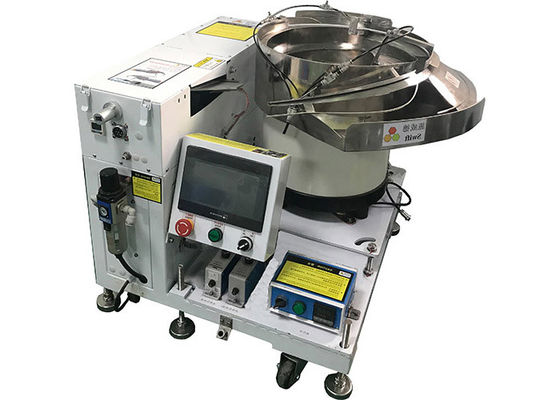

80N Adjustable AC220V Automatic Cable Tie Machine With Zip Tie Gun

80N Adjustable AC220V Automatic Cable Tie Machine With Zip Tie Gun



Automatic cable tie machine that helps you quickly and safely install nylon cable ties around cable bundles without injuring hands!



Description of automatic cable tie installation machine



1. Ergonomic handle and trigger design: comfortable to hold and operate.



2. Handler needs to put loose nylon zip ties into vibration feeder. They would be sorted and transferred into the tie gun one by one.



3. Nylon zip ties would be wrapped, tightened and cut in 0.8S.



4. Bundle cycle time: 0.8S/cable tie



5. Workers can adjust the bundle forces in the tie gun through turning a knob.



6. Handheld zip tie tool gun is suitable for tightening those components which has step features or is with small space for cable tie to go through.



7. Automatic cable tie tool needs electricity and air source.



Information of cable tie gun machine



Model SWT36100H
Cable tie gun Cable tie gun tool – handheld type
Batteries included No
Batteries required No
Applicable cable tie model T36100
Applicable cable tie width 3.6mm
Applicable cable tie length 100mm
Applicable cable tie head L6.1 * W5.9 * H4.6mm
Bundle diameter ø3 - ø 18mm
Bundle forces 20N - 80N adjustable
Bundle speed 0.8S/cable tie
Bundle productivity 2400pcs/h, including the time of picking and placing products
Host machine L89*W90*H79cm
Cable tie gun L240*W73*H74mm
Voltage AC220V, 50/60Hz
Pneumatic pressure 5kg/cm²



Advantages of nylon cable tie installation machine



1. The waste of zip ties could be collected into a box or a tin. Keep clean in factory.



2. It is easy to adjust the bundle forces (20N – 80N) by turning the knob in the tie gun.



3. Automatic cable tie machine can save 2workers and much time of tying zip ties.



80N Adjustable AC220V Automatic Cable Tie Machine With Zip Tie Gun 0



Applications



1. Cable harness inside home appliance, such as oven, washing machines, refrigerators etc.



2. Cable harness in elevators



3. Camouflage net/netting in material industry and military industry.



Trade terms



Sea port Shenzhen, Guangzhou, Dongguan
Payment 100% TT before ship
Lead time 15 working days
Packing Wooden cases
Warranty 1 year and tech support forever



Packing details



Packing list



Host machine *1
Vibration bowl *1
Tie gun *1
Data cable for tie gun *1
Tool kit *1
English manual *1



Packing size and weight



Item Packing size N.W./kg G.W./kg
Vibration feeder 79*67*70cm 60 85
Host machine and others 95*95*90cm 70 100



FAQ



1. What are the requirements for automatic cable tie machine?



The machine asks for good nylon cable ties. That means cable ties are straight, stronger, no burr/flash/deformation. “Straight” means cable ties are same and it is better without the tilt angle. Swift cable ties are designed for automatic cable tie machines specially. They are more suitable for using in the cable tie machine than other brand cable ties.



2. Do you have service center in other countries?



No, we don't have.



3. Could I buy only cable tie gun and does it work?



No, the tie gun works together with the host machine. It is without battery.
