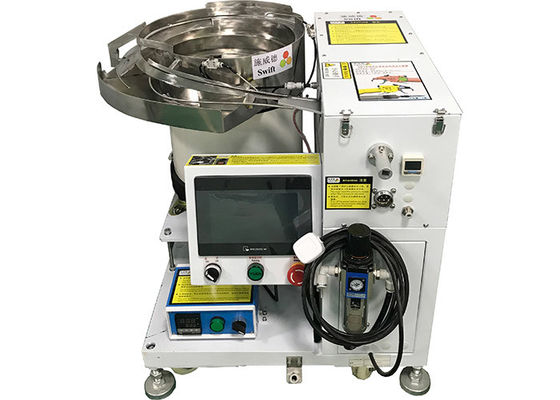

Diameter 17mm 0.7S Automatic nylon cable tie machine
0.7S Automatic Tensioning Tools Guns Of Fasten Cutting Tool Diameter 17mm
Automatic cable tie gun can fasten and cut nylon cable ties in short time 0.7S. One zip tie gun can save 2 workers even more.
Description of nylon cable tie guns
1. Metal construction, steel alloy frame of tie gun.
2. Ergonomic handle and trigger design
3. Using with nylon cable ties T25100, width2.5 * length100mm
4. Adjustable tension: turn a knob of the tie gun easily. Cable ties will be cut once reach the tension.
5. This automatic cable tie gun is suitable for the rapid binding wire harness, cable harness and other similar products.
6. Bundle cycle time: 0.7S per cable tie.
7. Nylon cable ties will be wrapped, tightened and cut off once operator pulls the trigger.
8. Automatic cable tie machine can bundle 2400pcs cable ties per hour(if add the time of picking and placing goods, and 0.7S).
Information of automatic cable tie machine
| Model | SWT25100H |
| Cable tie gun | Handheld cable tie gun |
| Batteries included | NO |
| Batteries required | No |
| Applicable cable tie width | 2.5mm |
| Applicable cable tie length | 100mm |
| Applicable cable tie head | L4.8 * W4.8 * H3.8mm |
| Bundle diameter | Up to 17mm |
| Bundle forces | Up to 80N, adjustable |
| Bundle speed | 0.7S/cable tie |
| Bundle productivity | 2400pcs/h, including the time of picking and placing products |
| Host machine | L67*W66*H67cm |
| Cable tie gun | L250*W102*H64mm |
| Voltage | AC220V, 50/60Hz |
| Pneumatic pressure | 5kg/cm² |
Advantages of automatic cable tie tools
1. High quality and durable: Be made of metal and steel alloy, not plastic.
2. Automatically fasten cable ties and cut off as long as operator pulls the trigger of handheld tie gun.
3. Cut incision is smooth.
Applications
| Applications |
| 1. Wire harness inside white goods |
| 2. Cable harness in the board, PCBA |
| 3. Sealed bags in food industry/medical industry |
| 4. Camouflage net/netting in material industry and military industry |
Trade terms
| Sea port | Shenzhen, Guangzhou |
| Payment | 100% TT before ship |
| Lead time | 10-15working days |
| Packing | Wooden cases |
| Warranty | 1 year |
Packing details
Automatic cable tie machine will be packed in 2 wooden cases.
1. Vibration bowl: packing size: L670*W550*H630mm/wooden case, G.W.: 66KG
2. Host machine and others: packing size: L740*W700*H850mm/wooden case, G.W.: 97KG
FAQ
1. What are the requirements for automatic cable tie machine?
The machine asks for good nylon cable ties. That means cable ties are straight, stronger, no burr/flash/deformation. “Straight” means cable ties are same and it is better without the tilt angle. Swift cable ties are designed for automatic cable tie machines specially. They are more suitable for using in the cable tie machine than other brand cable ties.
2. What are the requirements for bundled products?
SWT25100H automatic cable bundle machine deals with nylon cable ties T25100. The length of cable ties are 100mm. The max bundled diameter of products is 17mm.
3. Do you have a cable tie gun with battery?
No, we don't have. Our cable tie guns work with host machines.
