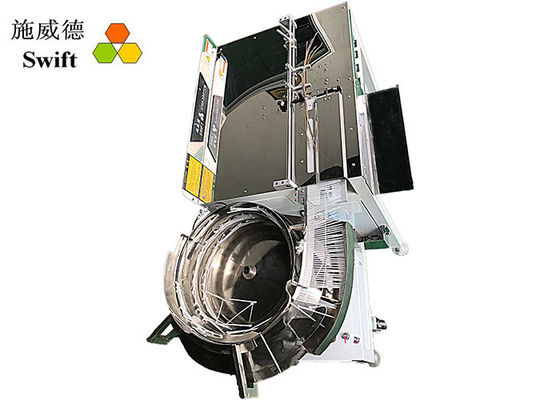

3200pcs/H AC220 Desktop 60Hz Automatic Zip Tie Machine
Desktop Automatic Nylon Cable Tie Machine For Bundle Wire Harness
1. To bind simple wire harness! Not suitable for irregular objects!
2. 0.8S finishing bundling a cable tie.
3. Be suitable for simple wire cable binding or PVC sleeve.
Technical data of automatic cable tie machine
| Item | Data |
| Automatic cable tie machine model | SWT25100D |
| Bundle speed | 0.8S per cable tie |
| Bundle productivity | 3,200pcs/h |
| Applicable cable ties model | T25100 |
| Applicable length/width/thickness of cable ties: | 100mm/2.5mm/1.1mm |
| Applicable wire harness/tubes diameters |
ø2mm - ø16mm for wire harness; ø2mm - ø14mm for tubes |
| Voltage | AC220, 50/60Hz |
| Power | 1,000W |
| Pneumatic pressure | 3kg/cm² |
| Host size | L1040 * W640 * H750mm |
| Cable tie gun or not | No cable tie gun, with jaws |
Working process of nylon cable tie machine
Working principle: loading and distributing nylon cable ties, auto tying.
Nylon cable ties requirements
1. Main size: W2.5*L100*T1.1mm;
2. Model: T25100, Head size: L4.8*W4.8*H3.8mm;
3. Material: nylon PA66
4. Tensile strength: 8kg
Features/functions of nylon cable tie machine
1. Use bulk zip ties, vibration feeding, automatically move cable ties to the position of jaws.
2. After pedal the pedal, cable ties would be wrapped, pulled and tightened, cut off.
In the meantime, the waste also be collected into a box.
3. The operation speed is about 0.8S. One machine can save 2 workers.
4. The binding forces are adjustable.
5. Voltage: AC220, 50/60Hz; pneumatic pressure: 3kg/cm²
About packing
Be packed in wooden case.
Packing size: L118 * W60 * H100mm, G.W.: 167kg
About delivery
10-12days
Other nylon cable tie machines
| Model | SWT25080H | SWT25120F |
| Cable tie gun type | Handheld | Fixed |
| Nylon cable ties requirements | T25080, W2.5 * L80mm | T25120, W2.5 * L120mm |
| Bundle speed | 0.7S | 1.0S |
| Bundle diameters | ø2mm –ø 14mm | ø2mm –ø 22mm |
| Pneumatic pressure | 5kg/cm² | 5kg/cm² |
| Voltage | AC220V, 50/60Hz | AC220V, 50/60Hz |
FAQ
1. Can we use automotive cable tie clips in automatic cable tie machine?
No, automatic cable tie machine just deal with general nylon cable ties.
2. Why do you suggest using your nylon cable ties?
Because automatic cable tie machines ask nylon cable ties to be stronger, no burr/flash and be straight without deforming. If nylon cable ties are like that, the machine can work well, or it is easy to jam. And our cable ties are designed for machine-using and are more suitable for machines.
3. Where is your factory?
It is located in Shenzhen, China.
Our products are sold all over the world, you can rest assured.
