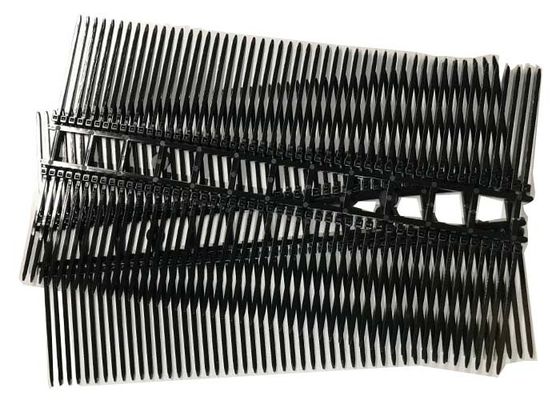

100mm Length Black Bulk Zip Ties With UL94V2 Heat Resistant 80degree
Width 2.5mm, length 100mm, thickness 1.1mm.
Features
1. One-piece construction, consistent performance and reliability.
2. Small threading force.
3. Straight tip is useful to use cable ties in automatic cable tie system.
4. Loop tension before aging is more than 22kg.
Loop tension after aging is more than 19kg.
T25100 base data
Brand | SWIFT |
Model | T25100 |
Application tool | SWT25100H, SWT25100F |
Description | Cable ties W2.5mm * L100mm * T1.1mm, Green |
Product family | T series |
Releasable closure | NO |
Tie closure | Plastic pawl |
Variant | Inside Serrated |
T25100 dimensions
Max Bundling Diameter for wire | 18mm |
Max Bundling Diameter for tube | 16mm |
Min Bundling Diameter | 2mm |
Length | 100mm |
Width | 2.5mm |
Tensile strength | 8kgf |
Material and specifications
Flammability | UL94V2 |
Halogenfree | Yes |
Material | High quality material PA66 |
Operating temperature | -30℃ - +80℃ or -30℃ - +120℃ |
Specifications | UL, CE, Reach, RoHS |
Applications
Be used in countless applications, wires inside white goods, PCB board with a cable, photovoltaic cables etc.
FAQ
1. Can you send free samples?
Yes, pls contact our sales team. They would give you more details.
2. Are you a factory?
Yes, we are. We have a factory in Shenzhen.
3. What is the delivery?
10days
