SWT25120H Automatic Cable Tie System AC 220V 120mm Length For Loose Plastic Ties

SWT25120H Automatic Cable Tie System AC 220V 120mm Length For Loose Plastic Ties

  • High Light

    automatic cable tie machine

    ,

    automatic zip tie machine

  • Name
    Automatic Cable Tie System For Cable Management
  • Model
    SWT25120H
  • Cable Ties
    W2.5 * L120mm(4.72inch)
  • Max Binding Dia.
    22mm
  • Min Binding Dia.
    2mm
  • Voltage
    AC220V,50/60Hz, Different Plugs
  • Place of Origin
    Shenzhen, China
  • Brand Name
    Swift
  • Certification
    CE / RoHS
  • Model Number
    SWT25120H
  • Minimum Order Quantity
    1pcs
  • Price
    Negotiation
  • Packaging Details
    wooden case
  • Delivery Time
    10 - 15days
  • Payment Terms
    T/T
  • Supply Ability
    100pcs/month

SWT25120H Automatic Cable Tie System AC 220V 120mm Length For Loose Plastic Ties

SWT25120H Automatic Cable Tie System, Nylon Cable Tie Gun For Loose Plastic Ties 120mm Length

Fast bundle, improving the work efficiency.

SWT25120H Technical Data



Product name Automatic cable tie tool
Model SWT25120H
Bundle ø Max 22mm
Min. Tensile strength 8kg
Cable tie width 2.5mm
Cable tie length 120mm
Flammability of cable ties UL-94-V2
Material of cable ties PA 66
Operating temperature -30℃ - 80℃
Reach / CE certificate Yes
Voltage AC220V, 50/60Hz
Pneumatic pressure 5kg/cm2


SWT25120H advantages



Automatic Cable Tie Machine Features:


1. Small,quick, reliable,,cost effective


2. It’s a must for any cable harness production facility

3. Fully Automatic Cable Tie Machine are customized to your product according to the type and cable tie length and requirements of your application

4. Uing loose cable ties 2.5 *120mm, vibration sorting and feeding.

5. Push the trigger in the gun head then tool automatically wraps, threads tightens and cuts cable ties.

6. The tightening force is adjusted.

7. The bundle speed is up to 0.7S per cable ties.



Packing details



Machine will be packed in wooden cases, totally two cases.



Shipment details



Delivery date: 12days.



By sea, air, dhl/fedex



Payment details



100%TT payment before shipment.



MOQ: 1pcs automatic cable tie tool; 100,000pcs cable ties.

FAQ



FAQ

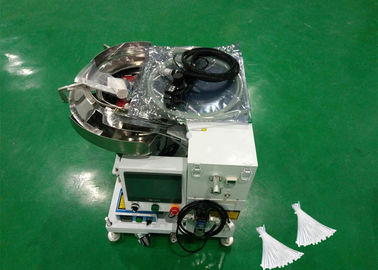

Q1 . What does cable tie machine consist of? It consists of the host machine, the vibration bowl and the gun tool and other parts.
Q2 . Can I use other same size cable ties in the machine? No, you cann't. The machine asks specific cable ties. We would customize one according to your cable ties.
Q3 . What is the min binding Dia of cable tie machine SWT25120H? Ø2mm
Q4 . What is the warranty? 1 year warranty and tech support forever.
