Light Weight Automatic Cable Tie Tool Air Source Powered 5kg/Cm2 Pneumatic Pressure

Light Weight Automatic Cable Tie Tool Air Source Powered 5kg/Cm2 Pneumatic Pressure

  • High Light

    automatic cable tie machine

    ,

    auto bundling machine

  • Name
    Automatic Cable Tie Machine
  • Application
    Binding Kinds Of Different Size Cable Wires
  • Using Cable Ties
    W3.6 * L150mm
  • Max Binding Dia. For Wire
    Ø31 Mm
  • Power
    AC220V 50/60Hz
  • Pneumatic Pressure
    5kg/cm²
  • Place of Origin
    China
  • Brand Name
    Swift
  • Certification
    CE
  • Model Number
    SWT36150FC
  • Minimum Order Quantity
    1pcs
  • Price
    negotiation
  • Packaging Details
    wooden case
  • Delivery Time
    10-15days
  • Payment Terms
    T/T
  • Supply Ability
    100pcs/month

Light Weight Automatic Cable Tie Tool Air Source Powered 5kg/Cm2 Pneumatic Pressure

Binding Speed Fast Auto Cable Tie Cutting Machine Smaller CE Certificate



If your factory uses the reel cable ties, it is suitable for you to choose an automatic cable tie tool that use strip cable ties. It can be fixed near the assembly line. It can automatically bind and cut off the cable tie within 1.2S. It is faster than by hand.



SWT36150FC features



1 . Using 1.2s to feed, wrap, cut off and collect the waste.



2 . Using the reel cable ties, that means there is no vibration bowl. If run out of cable ties, you need to load another one. There are 4000pcs in one roll.



3 . The gun head is fixed and the machine has a pedal to trigger all actions, such as feeding, cutting off.



4 . The whole machine is smaller than the handheld type.



5 . There is no wheel. The host machine weight is light, about 30kg. It is easy to move for you.



6 . Electrical power is AC220V 50/60Hz.



7 . Using air source. The pneumatic pressure is 5kg/cm2



Technical parameter

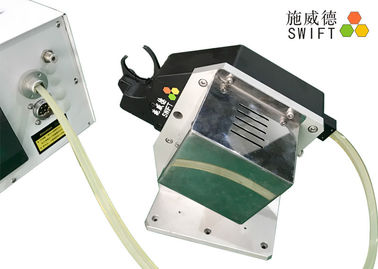

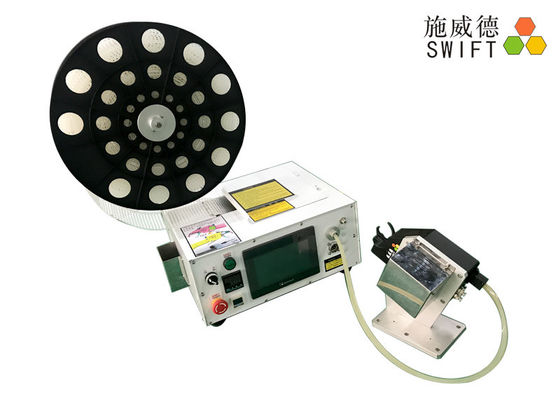

SWT36150FC - automatic cable tie tool fixed in the desktop
Size Of cable size W3.6 * L150mm Voltage AC220V,50/60Hz
Operation speed 1.2S/cable tie The gun V. DC48V(auto switch)
Max banding Dia. for wire Ø31mm Power 1000W
Max banding Dia. for tube Ø30mm Pneumatic pressure 5kg/cm²
Min banding Dia. Ø3mm Certificate CE, RoHS
The bending force Available The tensile strength of SWIFT cable ties 14kg
Host size L710* W470*H230mm The host weight 30kg
Gun size L291 * W240*H149mm The gun weight 4.0kg
Automatic cable tie tool - the handheld type
Model SWT25100HC SWT36150HC SWT36200HC
Operation speed 1.0S/cable tie 1.2S/cable tie 1.3S/cable tie
Max banding Dia. for wire Ø18mm ø31mm ø42mm
Max banding Dia. for tube Ø16mm ø30mm ø40mm
Min banding Dia. Ø3mm Ø3mm ø20mm
The bending force Available
The tensile strength of SWIFT cable ties 8kg 14kg 15kg
Voltage The host: AC220V,50/60Hz; the gun: DC24V(auto switch)



Swift advantages



We are manufacturer and we have more than 16 years' experience in automation industry.



We can offer you the best price and good quality machine.



We can offer you the best service because we have a stronger technical team.



We often attend the fair home and abroad and can offer our professional suggestions to our customers.



Our factory

Light Weight Automatic Cable Tie Tool Air Source Powered 5kg/Cm2 Pneumatic Pressure 0



Productronica China in Shanghai 2016



Light Weight Automatic Cable Tie Tool Air Source Powered 5kg/Cm2 Pneumatic Pressure 1



FAQ



1 . Are you a manufacturer?

     Yes, we are. There are two main business, including nylon cable tie tool and nylon zip ties.



2 . Do you provide design services?

     Yes, we offer the design services related to nylon cable ties & tools.



3 . What's the lead time of the auto cable tie tools?

     The lead time is 10-15 working days after confirm your details and payment.
