Customized Automatic Cable Tie Tool AC220V 50 / 60Hz Electrical Powered With Robot Arm

China Customized Automatic Cable Tie Tool AC220V 50 / 60Hz Electrical Powered With Robot Arm supplier
Customized Automatic Cable Tie Tool AC220V 50 / 60Hz Electrical Powered With Robot Arm supplier Customized Automatic Cable Tie Tool AC220V 50 / 60Hz Electrical Powered With Robot Arm supplier

Large Image :  Customized Automatic Cable Tie Tool AC220V 50 / 60Hz Electrical Powered With Robot Arm

Product Details:

Place of Origin: Made in china
Brand Name: Swift
Certification: CE
Model Number: SWT25080R

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Packed in wooden case
Delivery Time: 15 working days after received your payment
Payment Terms: 100% T/T
Supply Ability: 100pcs per month
Contact Now
Detailed Product Description
Product Name: Automatic Cable Tie Tool Application: Banding Wire Harness / Tube
Cable Tie Spec: 2.5 * 80mm Minimum Banding Diameter: Ø2.0mm
Maximum Banding Diameter: Ø12mm Operation Speed: 0.9S

Automatic Cable Tie Gun Robot Arm With Nylon Cable Tie Size 2.5 * 80mm



The automatic cable tie machine with a robot arm is used in automatic assemble ine. It is faster and quickly to finish bundling objects with cable ties. We can customize one for you.



Description:

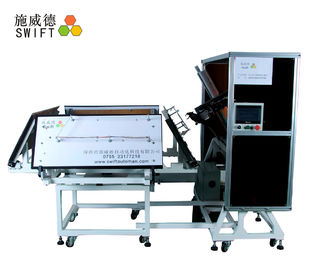

1 . The full automatic cable tie machine consists of a robot and an automatic cable tie machine.

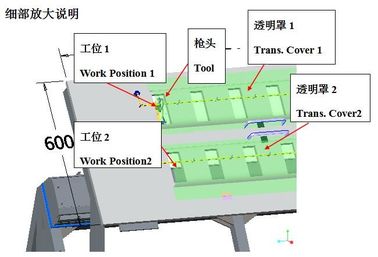

2 . The Robot and the Tool are moving under the fixture board, there are slots on the board, the Tool goes out of the board for cable tie bundling.



3 .  One Tool has two working fields, transpalent cover for each working field, the cover would actuate a switch when closing, operator is uploading the wires and testing the connecting at one of the working fields, the robot and the Tool is working at another working field.



Parameters





X/Y/Z/R Travel



X: 1200; Y:550; Z:40; R:0~180°



Fixture Board Size



Customize



Supportable Tool number



No rotation function when mounting 2 Tools



Electrical power



AC220V 50 / 60Hz



Pneumatic pressure



5 Kg/ cm²



Cable tie size



W2.5 * L100mm



FAQ



1 . Do you accept OEM order?



Yes, but we should know the final user.We will keep it strictly confidential



2 . What is your Pre-sales service ?



We will provide you with a selection service based on your sample(tied workpiece or nylon cable tie) or a picture(better video),or an improvement on the field-related process with your company.



3 . Do you have a sales rep to have a demo in customer company?



We usually provide free online guide. In fact, our customer often know how to use after online guild.
If you want have a demo onsite, it is no problem but you bear the business trip expenses.
